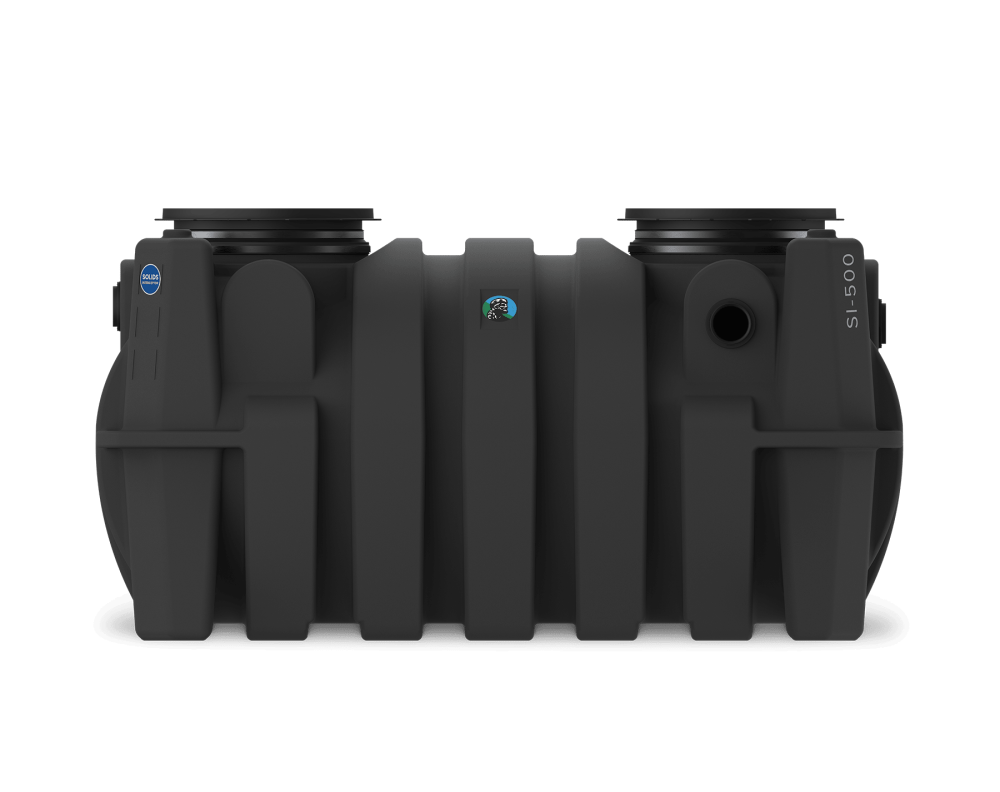

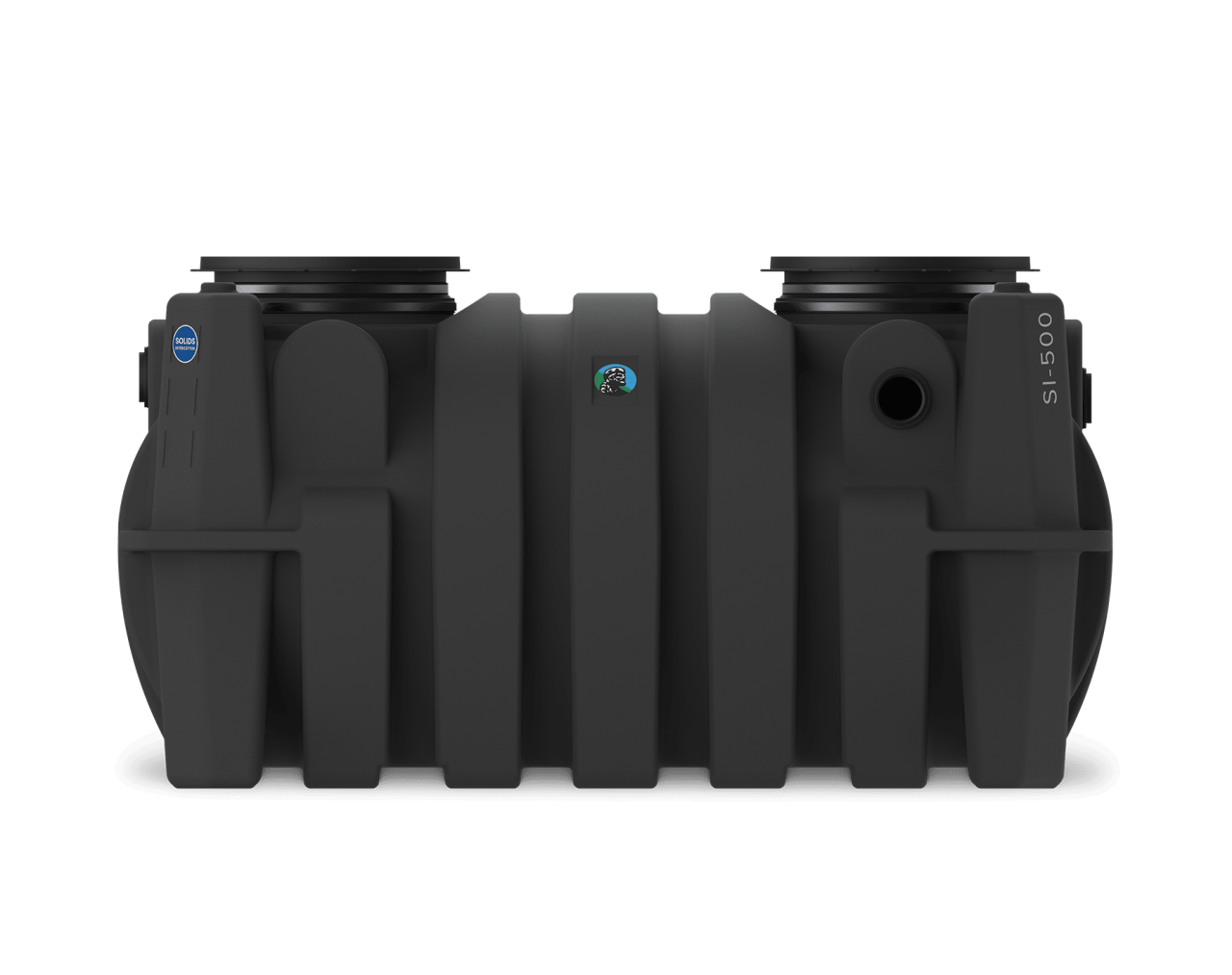

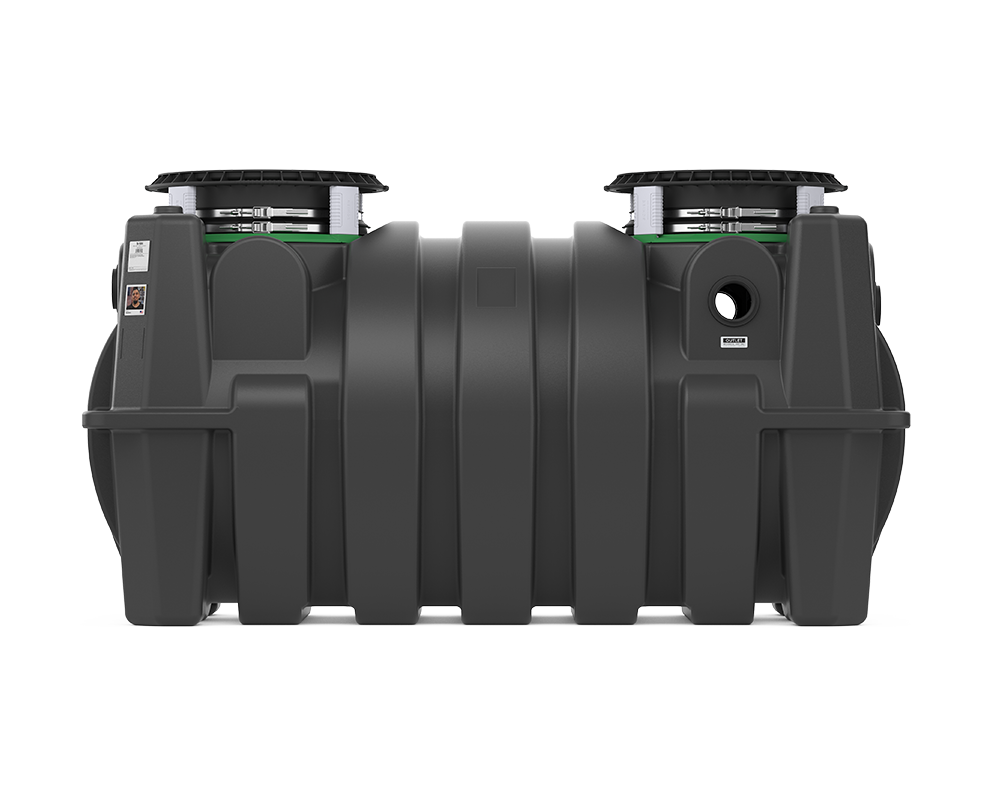

SI-500 | Indoor/Outdoor Solids Interceptor

SI-500

Solids Interceptor

SI-500

Online: $10,638.60

List: $15,198.00

Buy Now

Ratings
457 gal

Indoor / Outdoor

510 GAL

Liquid Capacity

Product Description

Kitchen Solids Interceptor

In many cases of interceptor backups, solids are to blame. Solids tend to result in immediate clogs, whereas grease problems happen over time. While our indoor/outdoor Great Basin® models have solids capacity built in, a separate solids interceptor should be considered when using a concrete or steel interceptor (to slow corrosion and rust), for restaurants with known solids problems, with any grease interceptor that does not include rated solids capacity, or in any facility that has a food waste grinder that is attached to the grease waste line.

More Features:

  • 457 gallons of solids capacity

  • Rugged polyethylene tank

  • Safety Star® access restrictor prevents accidental entry

  • Triple outlet feature allows for installation flexibility, including the ability to connect an unused outlet for remote pumpout (PP3 compatibility)

Need Documentation?
Learn More

Technical Information

Flow Rate
4" - 125 GPM (7.9 L/s)
6" - 375 GPM (23.7 L/s)

Solids Capacity 457 gal (1729.9 L)

Liquid Capacity 510 gal (1,930.6 L)

Weight 528 lbs (239.5 kg)

Installation Location Indoor/Outdoor

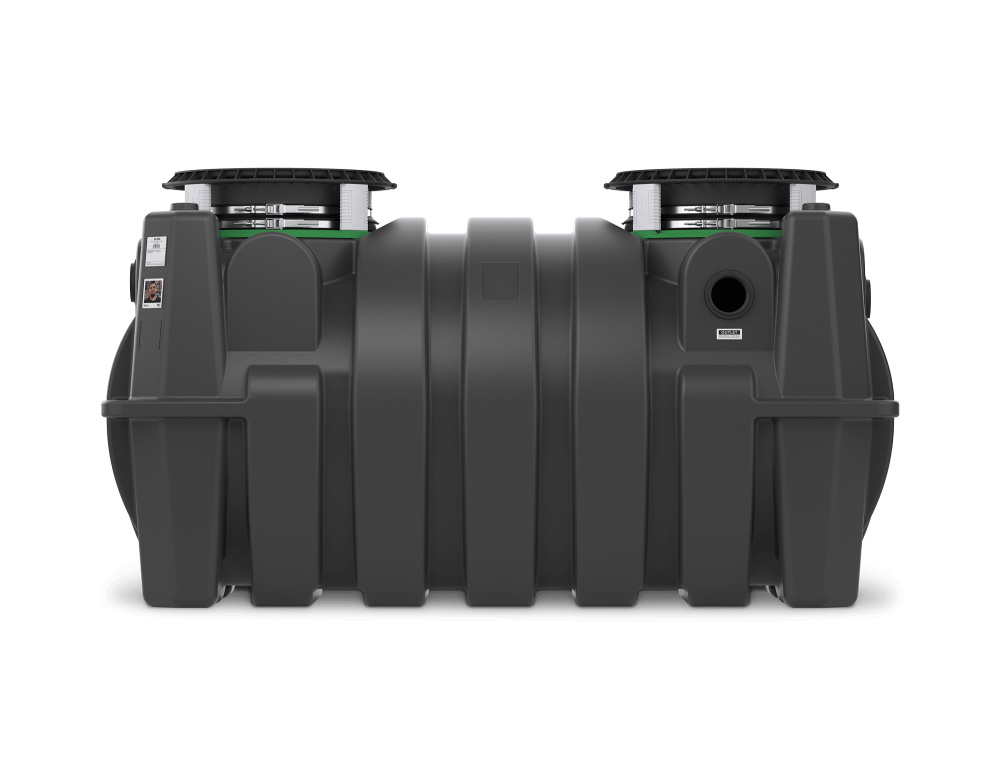

SI-500 product image

BILLY GOAT® FEATURE

Triple Outlet

Three outlets available for installation flexibility and optional pumpout port connection.

On the tank

Blue solids interceptor label and blue plastic wrap around each cover adapter

Product ID label with technical and certification details (also available inside the cover adapter)

"Made By" label featuring one of our product builders and the date your interceptor was built

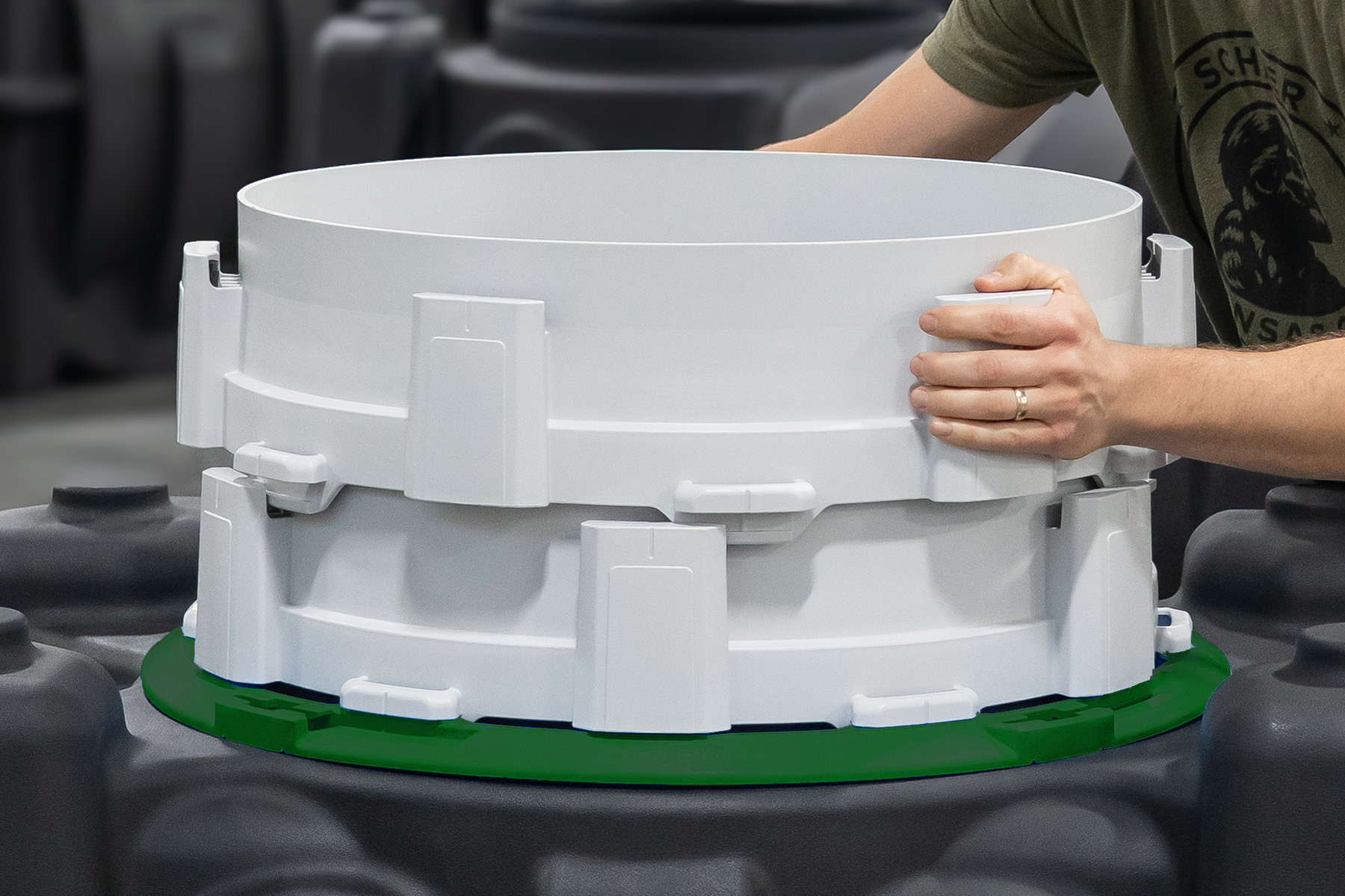

on-grade perfection

Schier's cover adapters give 4" of vertical adjustability and up to a 5-degree tilt in any direction, helping to ensure covers are installed perfectly inline on the concrete pad.

INLINE INSTALLATION RECOMMENDED WITH

GB-1000 product image
5,495 lbs at 100 GPM
5,272 lbs at 100 GPM at 99%
4,959 lbs at 200 GPM
3,127 lbs at 200 GPM at 99%
GB-1500 product image
10,061 lbs at 100 GPM
9,897 lbs at 100 GPM at 99%
9,446 lbs at 200 GPM
8,093 lbs at 200 GPM at 99%

Accessories

FCR2 product image
Field cut riser
AK2 product image
Anti-flotation anchor kit for use with GB-500 and SI-500.
AGS2 product image
Above Grade Support Kit for use with Great Basin® model GB-500.
PP3 product image
Pumpout Port Kit that converts an outlet into a pumpout port. Use with GB-50, GB-75, GB-250, GB-500.
AK1 product image
This anchor kit is recommended for installation in high water table conditions to prevent float out.
ATD1 product image
For securing covers to units in ABOVE GRADE INSTALLATIONS with increased head pressure conditions.
CA2 product image
Adapter for 24" Corrugated Pipe Riser
CC2 product image
For recessed and suspended units with 24" covers.
PLAIN-EA-24 product image
4" MPT - 2" Plain End Fitting.
PLAIN-EA-34 product image
4" MPT - 3" Plain End Fitting.
FPT-EA-23 product image
3" MPT - 2" FPT Fitting.
FPT-EA-34 product image
4" MPT - 3" FPT Fitting.

Frequently Asked Questions

When is a solids interceptor recommended?

Solids interceptors are only recommended when required by the authority having jurisdiction or for applications where an unusual amount of solids discharge is anticipated. Schier’s indoor/outdoor Great Basin® models provide up to 25% solids capacity to sufficiently capture the greases and solids that go down the kitchen drain line.

What cover options are available for Schier solids interceptors?

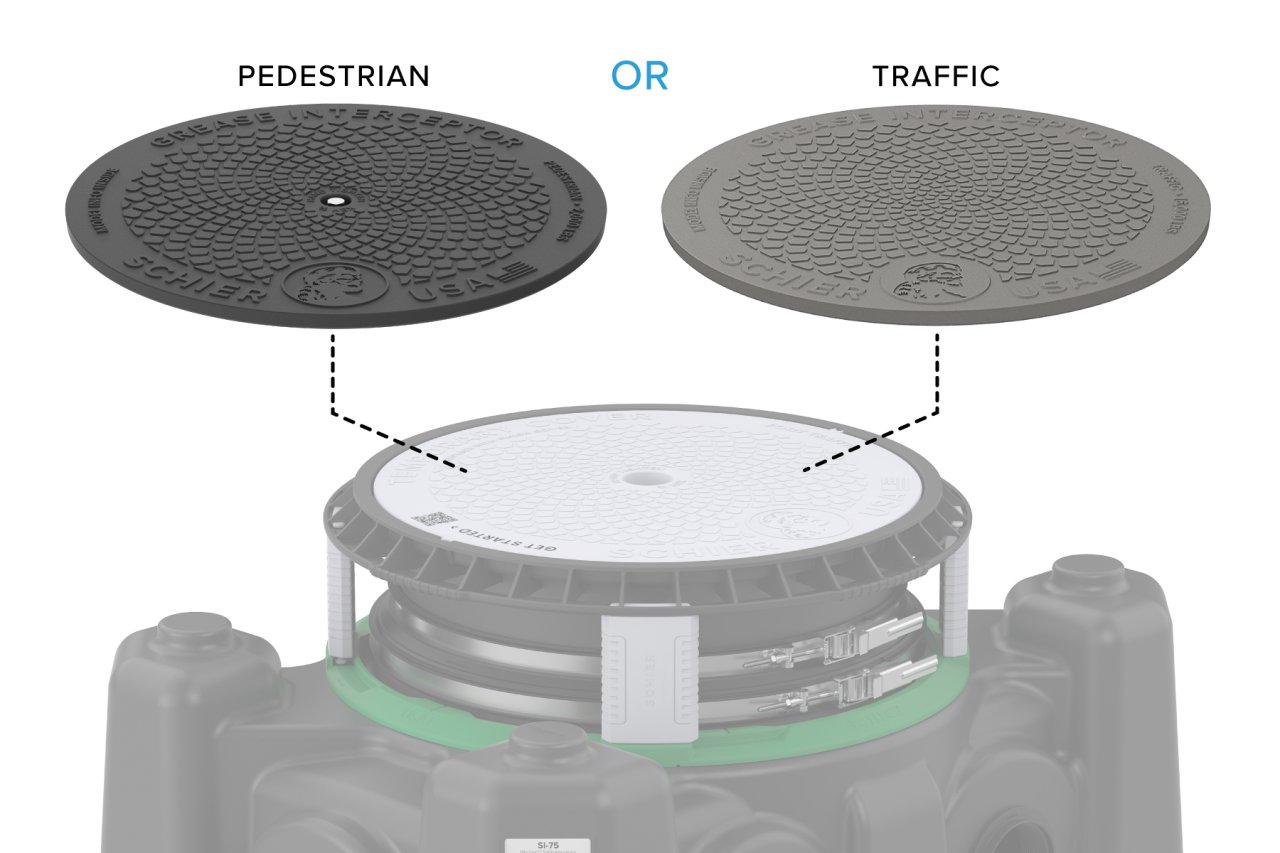

The two cover options are the H-20 load-rated pickable cast iron cover and the bolted composite cover. If the unit is being installed outside the building and/or in a vehicle traffic area it should have the H-20 load-rated cast iron cover(s). If the unit is going to be installed inside the building or above grade it should have the bolted composite cover(s). When purchasing a Schier solids interceptor online, you will be prompted to select your cover option prior to checkout.

When do you need to use a high-water/anti-flotation anchor kit?

If there is a possibility that ground water will come into contact with the unit, there needs to be a high-water/anti-flotation anchor kit installed (AK1, AK2, AK3).
